16-bit microcontroller featuring a PIC core architecture operating at up to 32MHz. Offers 16KB of FLASH memory and 4KB of RAM, with 35 programmable I/O pins. Supports I2C, SPI, IrDA, UART, and USART interfaces, along with 5 PWM channels and 5 timers/counters. Packaged in a TQFP surface mount case, this RoHS compliant component operates from 2V to 3.6V and across a temperature range of -40°C to 125°C.
Frequency32MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Microchip PIC24FJ16GA004-E/PT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Microchip PIC24FJ16GA004-E/PT technical specifications.
General
| Package/Case | TQFP |
| Core Architecture | PIC |
| Data Bus Width | 16b |
| Frequency | 32MHz |
| Interface | I2C, SPI, IrDA, UART, USART |
| Lead Free | Lead Free |
| Max Frequency | 32MHz |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 16KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of I/Os | 35 |
| Number of Programmable I/O | 35 |
| Number of PWM Channels | 5 |
| Number of Timers/Counters | 5 |
| Oscillator Type | Internal |
| Package Quantity | 160 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, LVD |
| Radiation Hardening | No |
| RAM Size | 4KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® 24F |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC24FJ16GA004-E/PT Datasheet
Download the complete datasheet for Microchip PIC24FJ16GA004-E/PT to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

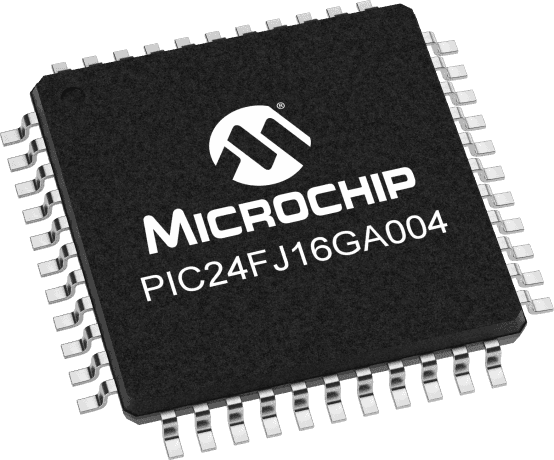

Product Images
