16-bit Flash Microcontroller, operating at up to 32MHz. Features 16KB Flash memory, 1KB RAM, and 15 programmable I/Os. Supports I2C, SPI, UART, IrDA, and USART interfaces. Includes internal oscillator, 3 timers/counters, and peripherals like Brown-out Detect/Reset, POR, PWM, and WDT. Packaged in a 20-pin SSOP for surface mounting, with an operating voltage range of 3V to 3.6V and an extended temperature range of -40°C to 125°C.
Frequency32MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ16MC101-E/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Interface
I2C, SPI, UART, IrDA, USART
Lead Free
Lead Free
Max Frequency
32MHz
Max Operating Temperature
125°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
15
Number of Programmable I/O
15
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
67
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, PIC® 24F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ16MC101-E/SS Datasheet
Download the complete datasheet for Microchip PIC24FJ16MC101-E/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

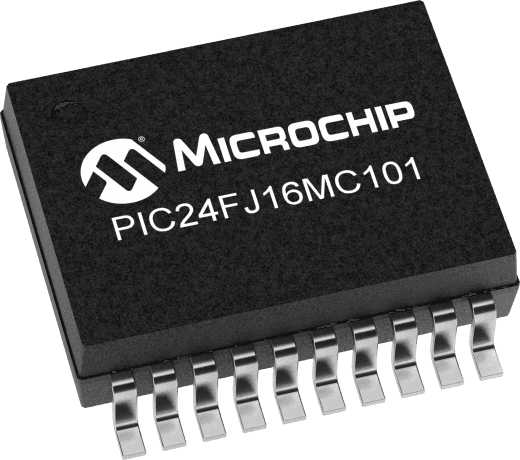

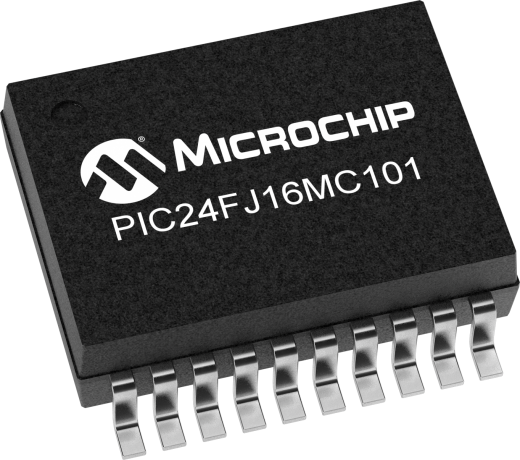

Product Images
