16-bit Flash Microcontroller (MCU) featuring a PIC core architecture, operating at up to 32MHz. This surface mount device offers 16KB of FLASH memory and 1KB of RAM, with 21 programmable I/O pins. Integrated peripherals include I2C, SPI, UART, IrDA, USART, LIN interfaces, 6 ADC channels, 6 PWM channels, and 3 timers/counters. Packaged in a lead-free SSOP-28, it operates from 3V to 3.6V and supports temperatures from -40°C to 85°C.
Frequency32MHz
PackageSSOP
Current16mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ16MC102-I/SS technical specifications.
General
Address Bus Width
16b
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
1.85mm
Interface
I2C, SPI, UART, IrDA, USART, LIN
Lead Free
Lead Free
Length
10.5mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Supply Voltage
3V
Mount
Surface Mount
Number of ADC Channels
6
Number of Bits
16
Number of I/Os
21
Number of I2C Channels
1
Number of Programmable I/O
21
Number of PWM Channels
6
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 24F
Supply Current
16mA
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ16MC102-I/SS Datasheet
Download the complete datasheet for Microchip PIC24FJ16MC102-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

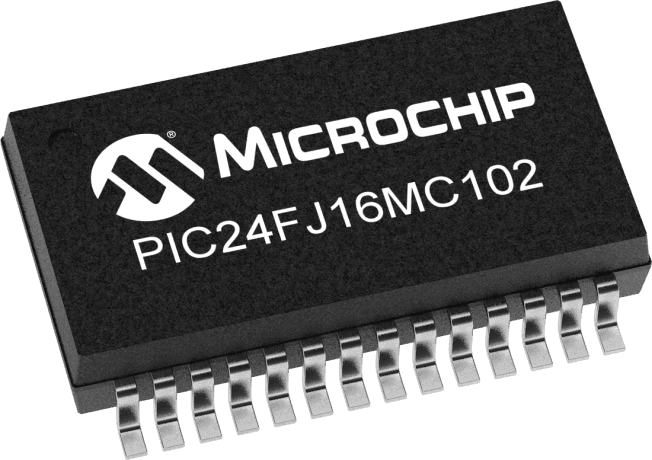

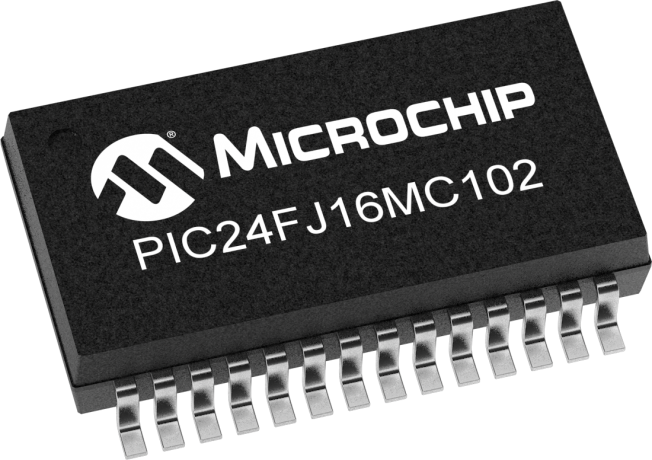

Product Images
