16-bit RISC microcontroller featuring 256KB FLASH memory and 16KB RAM. Operates at a maximum frequency of 32MHz with a 16-bit data bus width. Offers extensive connectivity with I2C (3 channels), SPI (3 channels), UART (4 channels), and USART interfaces. Includes 16 ADC channels, 9 PWM channels, 5 timers/counters, and 85 programmable I/Os. Packaged in a 100-pin TQFP (12x12mm, 1.05mm height) for surface mounting, with an operating temperature range of -40°C to 85°C.
Frequency32MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ256GA110-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Density
256KB
Frequency
32MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
12mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
16
Number of Bits
16
Number of I/Os
85
Number of I2C Channels
3
Number of Programmable I/O
85
Number of PWM Channels
9
Number of SPI Channels
3
Number of Timers/Counters
5
Number of UART Channels
4
Oscillator Type
Internal
Package Quantity
119
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC24F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
12mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ256GA110-I/PT Datasheet
Download the complete datasheet for Microchip PIC24FJ256GA110-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

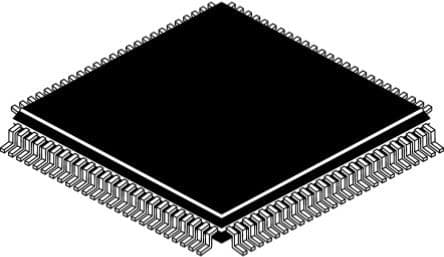

Product Images
