MICROCHIP

PIC24FJ256GA406T-I/MR

Datasheet

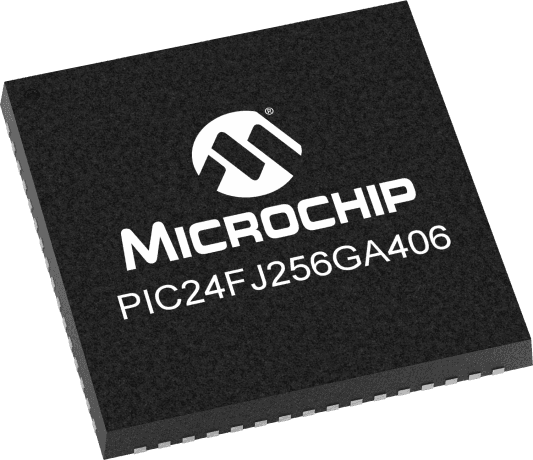

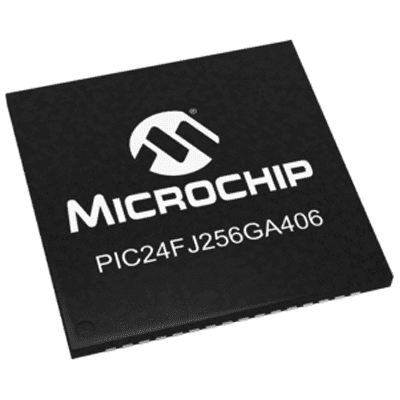

PIC24FJ256GA406T 256KB Flash Microcontroller, QFN-64, -40°C to 85°C

Microchip

PIC24FJ256GA406T-I/MR

Name: PIC24FJ256GA406T-I/MR Microchip
Brand: Microchip
SKU: PIC24FJ256GA406T-I/MR

PIC24FJ256GA406T 256KB Flash Microcontroller, QFN-64, -40°C to 85°C

The PIC24FJ256GA406T is a 256KB flash microcontroller from Microchip. It features a PIC core architecture and supports multiple interfaces including I2C, SPI, IrDA, UART, and USART. The device operates over a temperature range of -40°C to 85°C and is packaged in a QFN-64 package. It has 53 I/Os and includes peripherals such as brown-out detect/reset, power-on reset, pulse-width modulation, watch dog timer, direct memory access, low-voltage detect, and liquid crystal display support. The PIC24FJ256GA406T is RoHS compliant and available in tape and reel packaging.

PackageQFN

MountingSurface Mount

Quick Jump:

Technical Specifications

Microchip PIC24FJ256GA406T-I/MR technical specifications.

General

Package/Case	QFN
Core Architecture	PIC
Interface	I2C, SPI, IrDA, UART, USART
Max Operating Temperature	85°C
Memory Size	256KB
Memory Type	FLASH,
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of I/Os	53
Oscillator Type	Internal
Packaging	Tape and Reel
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT, DMA, LVD, LCD
RoHS Compliant	Yes
Series	PIC® XLP™ 24F
