16-bit microcontroller featuring a PIC core architecture, operating at up to 32MHz. This surface-mount device offers 256KB of FLASH memory and 96KB of RAM, with 84 I/O pins, including 44 programmable. Integrated peripherals include I2C, SPI, UART, USB, IrDA, USART interfaces, 24 ADC channels, and 9 PWM channels. Operating from 2V to 3.6V, it functions within a -40°C to 85°C temperature range and includes a watchdog timer.
Frequency32MHz
PackageTFBGA
Current12mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ256GB210-I/BG technical specifications.
General
Address Bus Width
16b
Package/Case
TFBGA
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Interface
I2C, SPI, UART, USB, IrDA, USART
Lead Free
Lead Free
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
24
Number of I/Os
84
Number of Programmable I/O
44
Number of PWM Channels
9
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
184
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
96KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 24F
Supply Current
12mA
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ256GB210-I/BG Datasheet
Download the complete datasheet for Microchip PIC24FJ256GB210-I/BG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

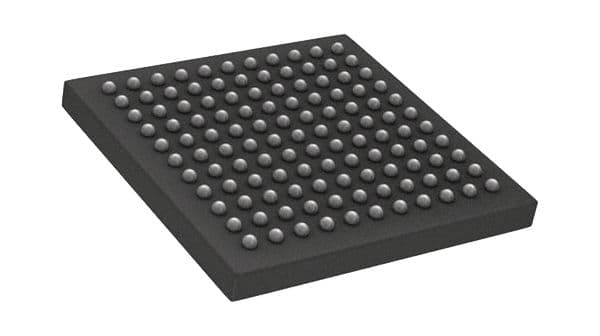

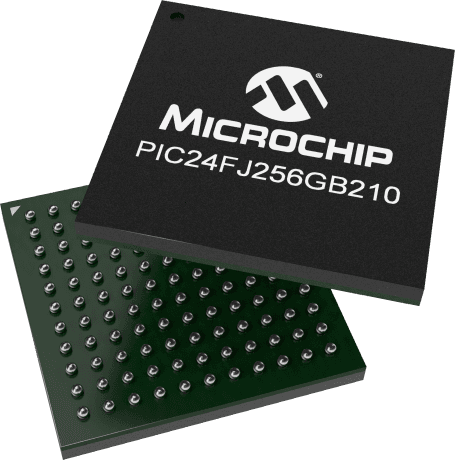

Product Images
