16-bit microcontroller featuring a PIC CPU core, operating at up to 32MHz. This surface-mount device offers 256KB of FLASH memory and 96KB of RAM, with 84 programmable I/O pins. Integrated peripherals include multiple I2C, SPI, and UART interfaces, along with USB, IrDA, and 24 ADC channels. The TQFP package measures 12mm x 12mm x 1.05mm, supporting a supply voltage range of 2V to 3.6V and operating temperatures from -40°C to 85°C.
Frequency32MHz
PackageTQFP
Current12mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ256GB210-I/PT technical specifications.
General
Address Bus Width
16b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
1.05mm
Interface
I2C, SPI, USB, UART, IrDA, USART
Lead Free
Lead Free
Length
12mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
256KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
24
Number of Bits
16
Number of I/Os
84
Number of I2C Channels
3
Number of Programmable I/O
84
Number of PWM Channels
9
Number of SPI Channels
3
Number of Timers/Counters
5
Number of UART Channels
4
Oscillator Type
Internal
Package Quantity
119
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
96KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC24F
Supply Current
12mA
Watchdog Timer
Yes
Width
12mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ256GB210-I/PT Datasheet
Download the complete datasheet for Microchip PIC24FJ256GB210-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

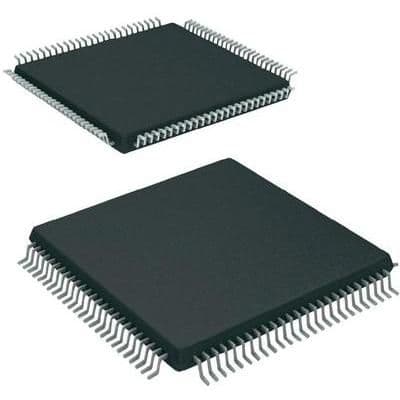

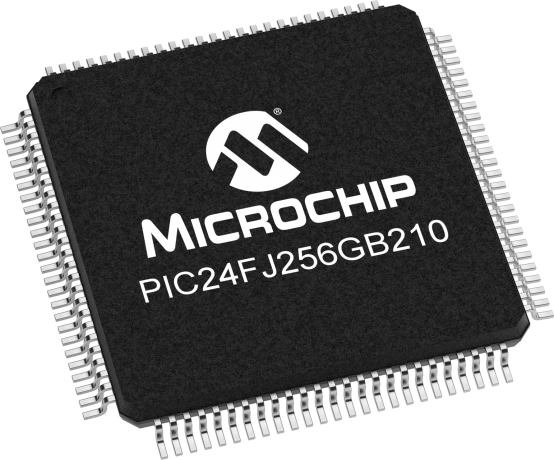

Product Images
