16-bit microcontroller featuring a PIC core architecture, operating at up to 32MHz. This FLASH memory microcontroller offers 32KB of program memory and 8KB of SRAM. It supports multiple interfaces including I2C, SPI, IrDA, and UART, with 21 programmable I/O pins. The device is housed in a 28-pin PDIP package, suitable for through-hole mounting, and operates within a voltage range of 2V to 3.6V.
Frequency32MHz
PackageDIP
Voltage Rating6V
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC24FJ32GA002-I/SP technical specifications.
General
Package/Case
DIP
Core Architecture
PIC
Data Bus Width
16b
Density
32KB
Frequency
32MHz
Height
0.15inch
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
35.56mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH, , SRAM
Min Supply Voltage
2V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
10
Number of Bits
16
Number of I/Os
21
Number of I2C Channels
2
Number of Programmable I/O
21
Number of PWM Channels
5
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC24F
Voltage Rating
6V
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ32GA002-I/SP Datasheet
Download the complete datasheet for Microchip PIC24FJ32GA002-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

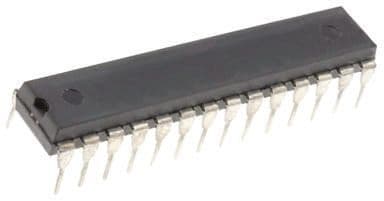

Product Images
