16-bit PIC microcontroller featuring a 32MHz core frequency and 32KB FLASH memory. This surface mount device offers 19 programmable I/O pins, 5 PWM channels, and 5 timers/counters. Integrated peripherals include I2C, SPI, UART, USART, and USB interfaces, alongside Brown-out Detect/Reset, POR, and WDT. Operating from a 2V to 3.6V supply, it functions within a -40°C to 85°C temperature range.
Frequency32MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ32GB002-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Interface
I2C, SPI, IrDA, UART, USB, USART
Lead Free
Lead Free
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of I/Os
19
Number of Programmable I/O
19
Number of PWM Channels
5
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC24F
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ32GB002-I/SO Datasheet
Download the complete datasheet for Microchip PIC24FJ32GB002-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

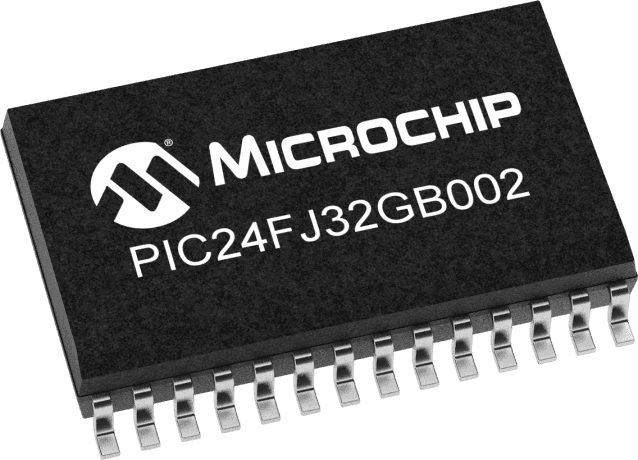

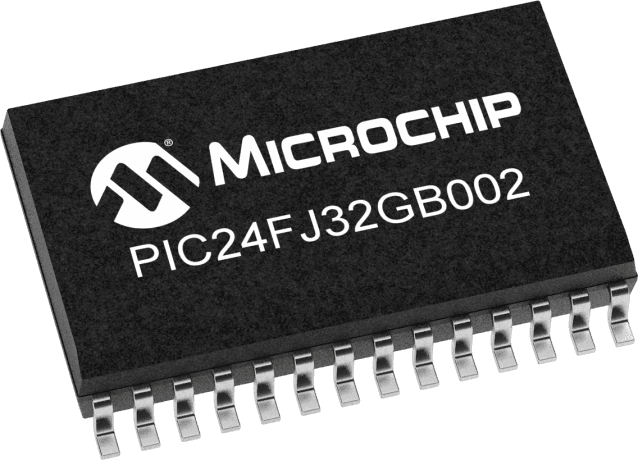

Product Images
