16-bit CMOS microcontroller featuring a PIC CPU core, operating at up to 32MHz. This surface-mount device offers 32KB FLASH memory and 8KB RAM, with 19 I/O pins, including 21 programmable I/Os. Integrated peripherals include I2C (2 channels), SPI (2 channels), UART (2 channels), USB (1 channel), IrDA, USART, 9 ADC channels, and 5 timers/counters. It supports a supply voltage range of 2V to 3.6V and operates from -40°C to 85°C, packaged in a 28-pin SSOP.
Frequency32MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ32GB002-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
1.85mm
Interface
I2C, SPI, UART, USB, IrDA, USART
Length
10.5mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
9
Number of I/Os
19
Number of I2C Channels
2
Number of Programmable I/O
21
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
47
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
PIC® XLP™ 24F
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ32GB002-I/SS Datasheet
Download the complete datasheet for Microchip PIC24FJ32GB002-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

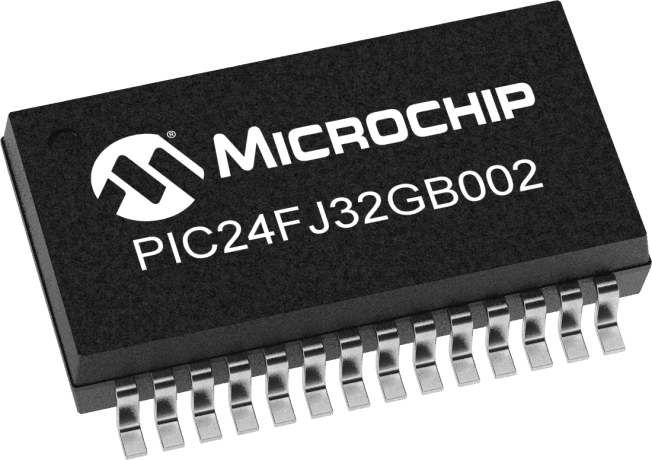

Product Images
