16-bit PIC microcontroller featuring a 32MHz core frequency and 32KB FLASH memory. This surface-mount device, housed in a TQFP package, offers 33 programmable I/Os, 13 ADC channels, and multiple communication interfaces including I2C (2 channels), SPI (2 channels), UART (2 channels), USB, and IrDA. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, and a watchdog timer. Operating within a 2V to 3.6V supply range, it supports temperatures from -40°C to 85°C.
Frequency32MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ32GB004-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
1.05mm
Interface
I2C, SPI, IrDA, UART, USB, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
13
Number of I/Os
33
Number of I2C Channels
2
Number of Programmable I/O
33
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® XLP™ 24F
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ32GB004-I/PT Datasheet
Download the complete datasheet for Microchip PIC24FJ32GB004-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

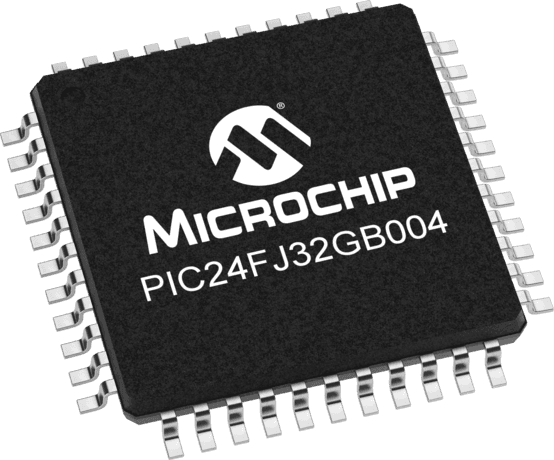

Product Images
