16-bit microcontroller featuring a PIC core architecture, operating at up to 32MHz. This surface mount device offers 64KB of FLASH memory and 8KB of RAM, with 21 programmable I/O pins. Integrated peripherals include multiple I2C, SPI, and UART interfaces, along with 5 timers/counters and 10 ADC channels. Packaged in a 6mm x 6mm QFN, it supports a voltage range of 2V to 3.6V and operates from -40°C to 125°C.
Frequency32MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ64GA002-E/ML technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
0.95mm
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
6mm
Max Frequency
32MHz
Max Operating Temperature
125°C
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
10
Number of I/Os
21
Number of I2C Channels
2
Number of Programmable I/O
21
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 24F
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ64GA002-E/ML Datasheet
Download the complete datasheet for Microchip PIC24FJ64GA002-E/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

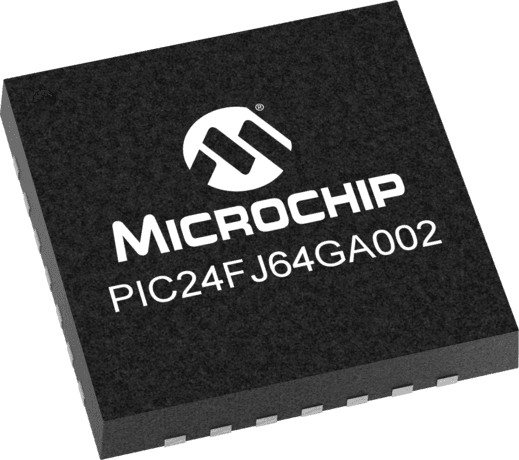

Product Images
