16-bit microcontroller featuring a 32MHz core frequency and 64KB of FLASH memory. This surface mount device offers 8KB of SRAM, 53 programmable I/O pins, and multiple communication interfaces including I2C, SPI, and UART. Integrated peripherals include PWM channels, timers, a watchdog timer, and 16 A/D converter channels. The TQFP package measures 10mm x 10mm with a 1mm height and 0.5mm lead pitch, operating from 2V to 3.6V supply voltage.
Frequency32MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ64GA006-I/PT technical specifications.
General
Access Time
16us
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Density
64KB
Frequency
32MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Lead Pitch
0.5mm
Length
10mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH, , SRAM
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
16
Number of Bits
16
Number of I/Os
53
Number of I2C Channels
2
Number of Programmable I/O
53
Number of PWM Channels
5
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
PWM, Brown-out Detect/Reset, POR, WDT, I2C
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC24F
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ64GA006-I/PT Datasheet
Download the complete datasheet for Microchip PIC24FJ64GA006-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

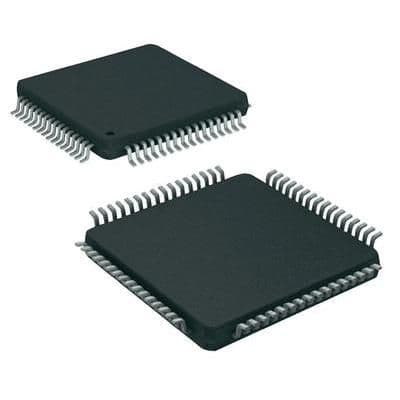

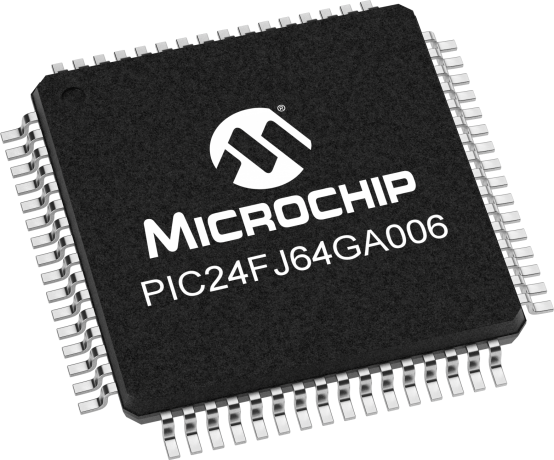

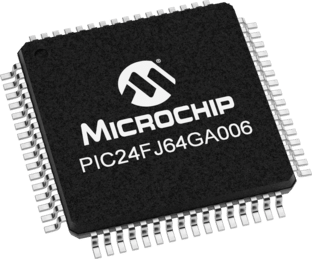

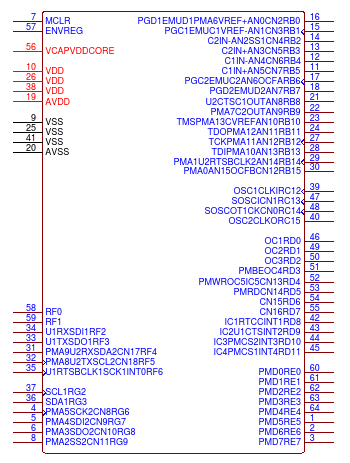

Product Images
