16-bit PIC microcontroller featuring a 32MHz core frequency and 64KB of FLASH memory. This CMOS integrated circuit offers 8KB of RAM and supports I2C, SPI, IrDA, UART, USART, and LIN interfaces. With 21 programmable I/O pins, 10 ADC channels, and 5 PWM channels, it is suitable for through-hole mounting in a 28-pin DIP package. Operating from 2V to 3.6V, this RoHS compliant component includes a watchdog timer and is designed for a temperature range of -40°C to 85°C.
Frequency32MHz
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC24FJ64GA102-I/SP technical specifications.
General
| Package/Case | DIP |
| Core Architecture | PIC |
| Data Bus Width | 16b |
| Density | 64KB |
| Frequency | 32MHz |
| Height | 0.15inch |
| Interface | I2C, SPI, IrDA, UART, USART, LIN |
| Lead Free | Lead Free |
| Length | 1.4inch |
| Max Frequency | 32MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 64KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Mount | Through Hole |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 10 |
| Number of Bits | 16 |
| Number of I/Os | 21 |
| Number of I2C Channels | 2 |
| Number of Programmable I/O | 21 |
| Number of PWM Channels | 5 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 5 |
| Number of UART Channels | 2 |
| Oscillator Type | Internal |
| Package Quantity | 15 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, LVD |
| Radiation Hardening | No |
| RAM Size | 8KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 24F |
| Termination | Through Hole |
| Watchdog Timer | Yes |
| Width | 0.295inch |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC24FJ64GA102-I/SP Datasheet
Download the complete datasheet for Microchip PIC24FJ64GA102-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

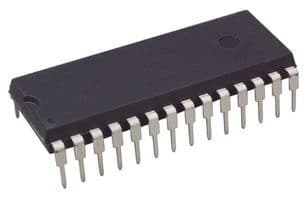

Product Images
