16-bit Flash Microcontroller (MCU) operating at 32MHz, featuring a PIC core architecture. This surface-mount device offers 64KB of FLASH memory and 8KB of RAM, with 21 programmable I/O pins. Integrated peripherals include I2C (2 channels), SPI (2 channels), UART (2 channels), USB, IrDA, USART, 9 ADC channels, and 5 PWM channels. The SSOP-28 package measures 10.5mm x 5.6mm x 1.85mm and operates within a 2V to 3.6V supply voltage range, from -40°C to 85°C.
Frequency32MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FJ64GB002-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
1.85mm
Interface
I2C, SPI, UART, USB, IrDA, USART
Lead Free
Lead Free
Length
10.5mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
9
Number of I/Os
21
Number of I2C Channels
2
Number of Programmable I/O
21
Number of PWM Channels
5
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Package Quantity
47
Packaging
Rail/Tube
Peripherals
POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
PIC24F
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FJ64GB002-I/SS Datasheet
Download the complete datasheet for Microchip PIC24FJ64GB002-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

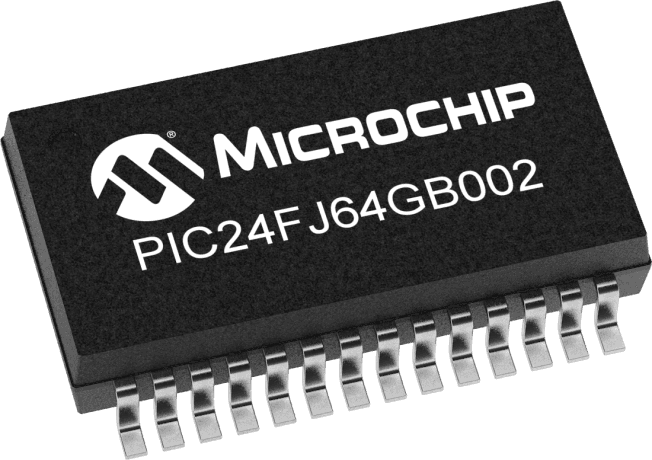

Product Images
