16-bit Flash microcontroller featuring a PIC core architecture, operating at up to 32MHz. This PDIP-packaged MCU offers 16KB of FLASH memory and 2KB of RAM, with 17 programmable I/O pins. Integrated peripherals include multiple I2C, SPI, and UART interfaces, along with 3 PWM channels and 5 timers/counters. Designed for through-hole mounting, it supports a supply voltage range of 2V to 5.5V and operates from -40°C to 85°C.
Frequency32MHz
PackagePDIP
Current3.5mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC24FV16KA301-I/P technical specifications.
General
Address Bus Width
16b
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
0.195inch
Interface
I2C, SPI, UART, IrDA, USART, LIN
Lead Free
Lead Free
Length
1.06inch
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
12
Number of Bits
16
Number of I/Os
17
Number of I2C Channels
2
Number of Programmable I/O
17
Number of PWM Channels
3
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Package Quantity
22
Packaging
Rail/Tube
Peripherals
PWM, I2C, POR, LVD
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC24F
Supply Current
3.5mA
Watchdog Timer
Yes
Width
0.28inch
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FV16KA301-I/P Datasheet
Download the complete datasheet for Microchip PIC24FV16KA301-I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

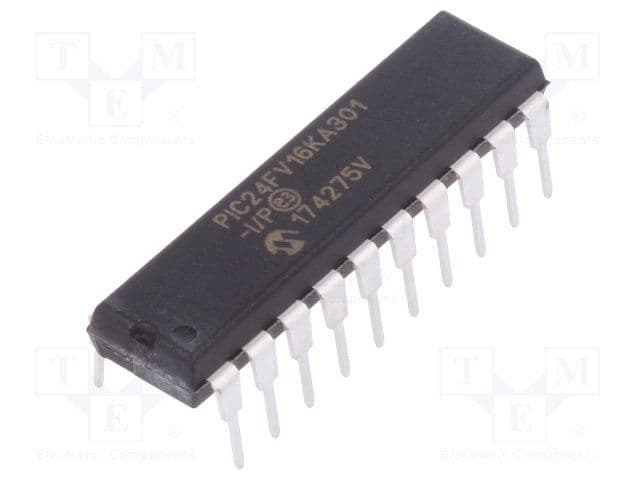

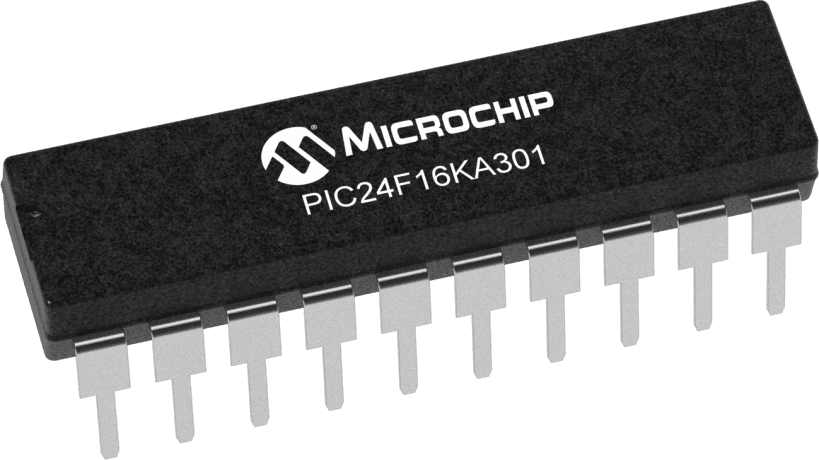

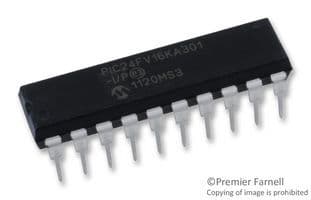

Product Images
