The PIC24FV16KM204-E/PT is a 16KB FLASH microcontroller with 37 I/Os, featuring a PIC core architecture and supporting I2C, SPI, IrDA, UART, and USART interfaces. It operates within a temperature range of -40°C to 125°C and is packaged in a TQFP-44 surface mount package. This device is RoHS compliant and part of the PIC XLP 24F series.
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FV16KM204-E/PT technical specifications.
General
| Package/Case | TQFP |
| Core Architecture | PIC |
| Interface | I2C, SPI, IrDA, UART, USART |
| Max Operating Temperature | 125°C |
| Memory Size | 16KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of I/Os | 37 |
| Oscillator Type | Internal |
| Package Quantity | 160 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, LVD |
| RoHS Compliant | Yes |
| Series | PIC® XLP™ 24F |
Compliance
| RoHS | Compliant |
Datasheet
Microchip PIC24FV16KM204-E/PT Datasheet
Download the complete datasheet for Microchip PIC24FV16KM204-E/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

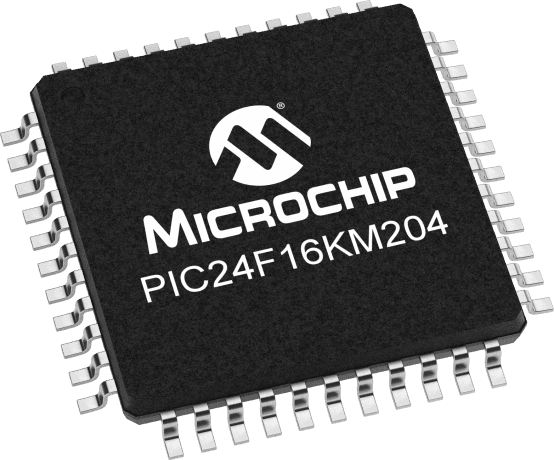

Product Images
