Frequency32MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip PIC24FV32KA301-E/P technical specifications.
General
Package/Case
PDIP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Interface
I2C, SPI, IrDA, UART, USART
Max Frequency
32MHz
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Through Hole
Number of Programmable I/O
17
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
22
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD
Radiation Hardening
No
RAM Size
2KB
Series
PIC® XLP™ 24F
Watchdog Timer
Yes
Compliance
RoHS
Not CompliantNo
Datasheet
Microchip PIC24FV32KA301-E/P Datasheet
Download the complete datasheet for Microchip PIC24FV32KA301-E/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

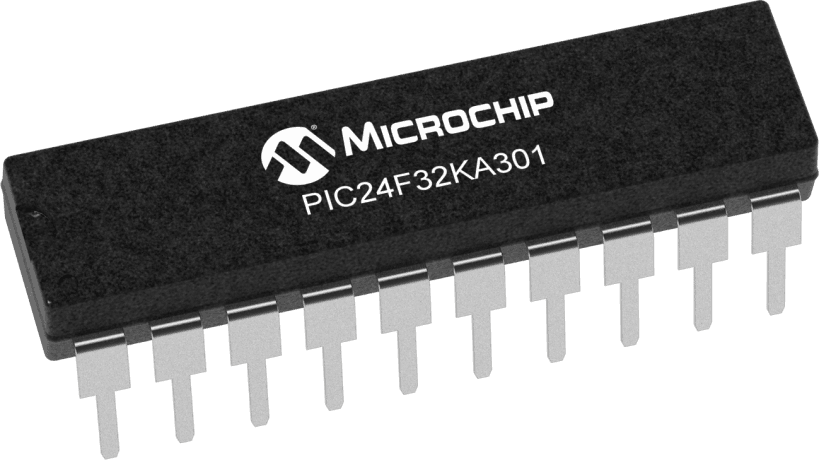

Product Images
