16-bit Flash microcontroller featuring a 32MHz core frequency and 32KB of program memory. This surface-mount device offers 2KB of RAM, 38 programmable I/Os, and supports I2C, SPI, UART, IrDA, USART, and LIN interfaces. Integrated peripherals include 16 ADC channels, 2 I2C channels, 2 SPI channels, 2 UART channels, 3 PWM channels, and 5 timers/counters, along with a watchdog timer. Operates from 2V to 5.5V with a temperature range of -40°C to 85°C, housed in a 44-pin TQFP package (10x10mm, 1.05mm height).
Frequency32MHz
PackageTQFP
Current3.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24FV32KA304-I/PT technical specifications.
General
Address Bus Width
16b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Frequency
32MHz
Height
1.05mm
Interface
I2C, SPI, UART, IrDA, USART, LIN
Lead Free
Lead Free
Length
10mm
Max Frequency
32MHz
Max Operating Temperature
85°C
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
16
Number of I/Os
38
Number of I2C Channels
2
Number of Programmable I/O
38
Number of PWM Channels
3
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, HLVD, I2C
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC24F
Supply Current
3.5mA
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24FV32KA304-I/PT Datasheet
Download the complete datasheet for Microchip PIC24FV32KA304-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

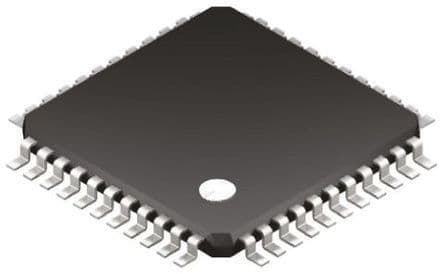

Product Images
