16-bit FLASH microcontroller operating at 40MHz. Features 128KB FLASH memory, 8KB RAM, and a 16-bit data bus. Includes 10 ADC channels, 21 programmable I/Os, 5 timers/counters, and multiple communication interfaces including I2C, SPI, and UART. Packaged in a 6mm x 6mm QFN with a height of 0.95mm, suitable for surface mounting. Operates from 3V to 3.9V with a temperature range of -40°C to 125°C.
Frequency40MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24HJ128GP202-E/MM technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
16b
Frequency
40MHz
Height
0.95mm
Interface
I2C, SPI, UART, IrDA, USART, LIN
Lead Free
Lead Free
Length
6mm
Max Frequency
40MHz
Max Operating Temperature
125°C
Max Supply Voltage
3.9V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of ADC Channels
10
Number of I/Os
21
Number of I2C Channels
1
Number of Programmable I/O
21
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Operating Supply Voltage
3.6V
Package Quantity
61
Packaging
Rail/Tube
Peripherals
PWM, I2C
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
PIC24H
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24HJ128GP202-E/MM Datasheet
Download the complete datasheet for Microchip PIC24HJ128GP202-E/MM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

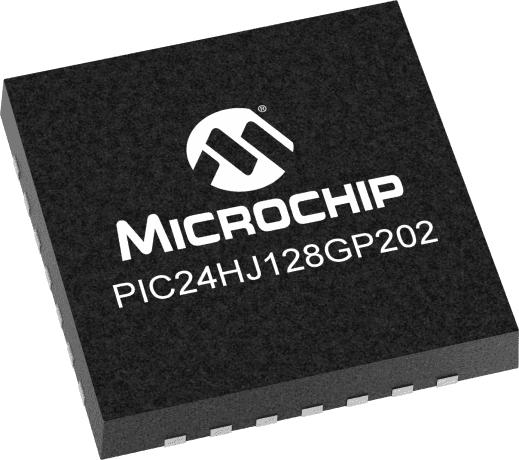

Product Images
