16-bit microcontroller featuring 128KB FLASH memory and 8KB RAM. Operates at up to 40MHz with a 16-bit data bus. Offers extensive connectivity with I2C, SPI, CAN, UART, IrDA, and USART interfaces. Includes 9 timers/counters and 53 programmable I/Os. Packaged in a 64-pin TQFP for surface mounting, with an operating temperature range of -40°C to 125°C.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24HJ128GP506A-E/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Frequency
40MHz
Interface
I2C, SPI, CAN, UART, IrDA, USART
Max Frequency
40MHz
Max Operating Temperature
125°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
53
Number of Programmable I/O
53
Number of Timers/Counters
9
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
8KB
Series
Automotive, AEC-Q100, PIC® 24H
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24HJ128GP506A-E/PT Datasheet
Download the complete datasheet for Microchip PIC24HJ128GP506A-E/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

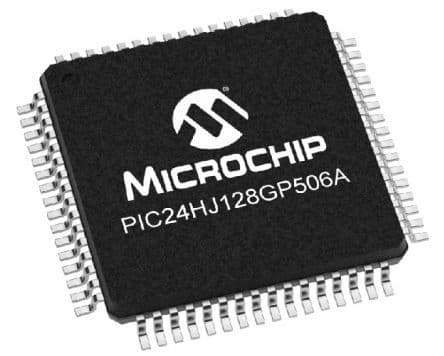

Product Images
