16-bit microcontroller featuring 256KB FLASH memory and 16KB SRAM. Operates at up to 80MHz with a 16-bit data bus width. Offers 85 programmable I/Os and supports multiple interfaces including I2C (2 channels), SPI (2 channels), CAN, UART (2 channels), USART, LIN, and IrDA. Includes 32 ADC channels, 8 PWM channels, 13 timers/counters, and peripherals like DMA, WDT, and POR. Packaged in a 100-pin TQFP with a 0.5mm lead pitch, suitable for surface mounting.
Frequency80MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24HJ256GP210-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
16b
Density
256KB
Frequency
80MHz
Height
1.05mm
Interface
I2C, SPI, CAN, UART, IrDA, USART, LIN
Lead Free
Lead Free
Lead Pitch
0.5mm
Length
12mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
256KB
Memory Type
FLASH, , SRAM
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
32
Number of Bits
16
Number of I/Os
85
Number of I2C Channels
2
Number of Programmable I/O
85
Number of PWM Channels
8
Number of SPI Channels
2
Number of Timers/Counters
13
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
119
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 24H
Watchdog Timer
Yes
Width
12mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24HJ256GP210-I/PT Datasheet
Download the complete datasheet for Microchip PIC24HJ256GP210-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

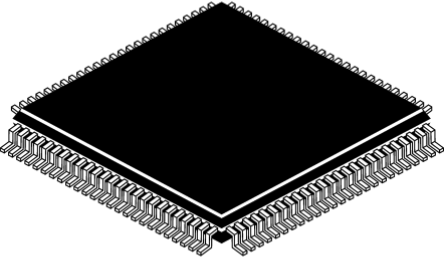

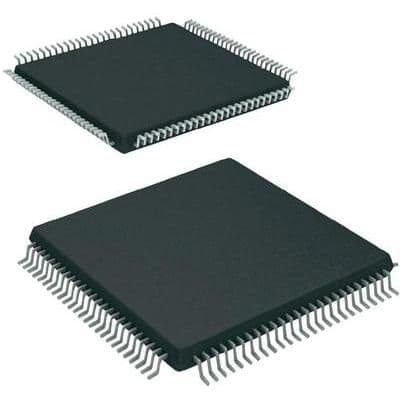

Product Images
