16-bit microcontroller featuring a PIC core architecture, operating at up to 80MHz with 64KB of FLASH memory and 8KB of RAM. This surface mount device offers 21 programmable I/O pins, supporting I2C, SPI, and UART/USART interfaces, along with 10 ADC channels and 5 timers/counters. Peripherals include Brown-out Detect/Reset, POR, PWM, WDT, and DMA. The QFN package measures 6x6mm with a 0.95mm height, operating from 3V to 3.9V and rated for -40°C to 85°C.
Frequency80MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC24HJ64GP202-I/MM technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
16b
Frequency
80MHz
Height
0.95mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
6mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.9V
Memory Size
64KB
Memory Type
FLASH,
Min Supply Voltage
3V
Mount
Surface Mount
Number of ADC Channels
10
Number of I/Os
21
Number of I2C Channels
1
Number of Programmable I/O
21
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC24H
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC24HJ64GP202-I/MM Datasheet
Download the complete datasheet for Microchip PIC24HJ64GP202-I/MM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

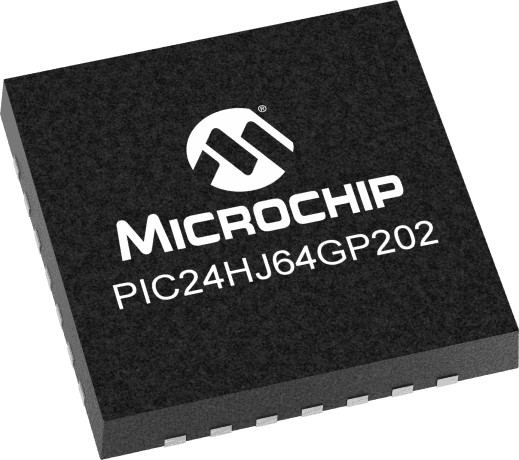

Product Images
