32-bit RISC microcontroller featuring a 40 MHz core frequency and 16KB of FLASH memory. This SOIC-28 packaged MCU offers 21 programmable I/Os, 5 PWM channels, and 15 timers/counters. Integrated peripherals include I2C, SPI, UART, USB, and a watchdog timer. Operates within a 2.3V to 3.6V supply voltage range and supports temperatures from -40°C to 85°C.
Frequency40MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC32MX110F016B-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
32b
Frequency
40MHz
Interface
I2C, SPI, UART, IrDA, USART, LIN, USB, I2S
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
85°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.3V
Number of I/Os
21
Number of Programmable I/O
21
Number of PWM Channels
5
Number of Timers/Counters
15
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
4KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX110F016B-I/SO Datasheet
Download the complete datasheet for Microchip PIC32MX110F016B-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

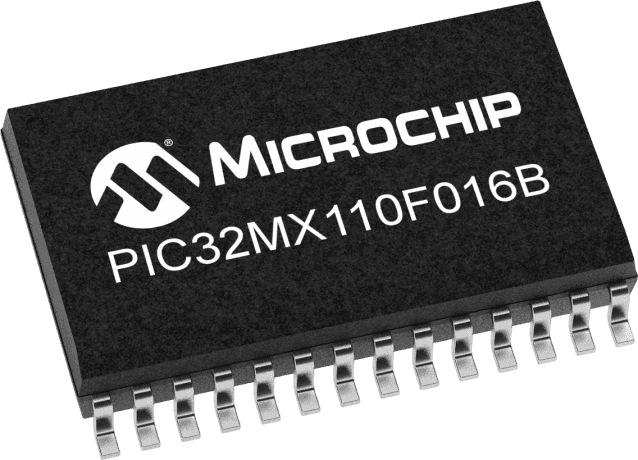

Product Images
