32-bit RISC microcontroller featuring a 40MHz core frequency and 16KB of FLASH memory. This surface-mount device offers 4KB RAM, 21 programmable I/O pins, and 15 timers/counters. Integrated peripherals include I2C, SPI, UART, USART, USB, I2S, IrDA, DMA, PWM, WDT, POR, and Brown-out Detect/Reset. Operating within a 2.3V to 3.6V supply range, it supports temperatures from -40°C to 85°C and is packaged in an SSOP-28 for tape and reel distribution.
Frequency40MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX110F016BT-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
32b
Frequency
40MHz
Interface
I2C, SPI, IrDA, UART, USART, USB, I2S
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of Programmable I/O
21
Number of Timers/Counters
15
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
2100
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX110F016BT-I/SS Datasheet
Download the complete datasheet for Microchip PIC32MX110F016BT-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

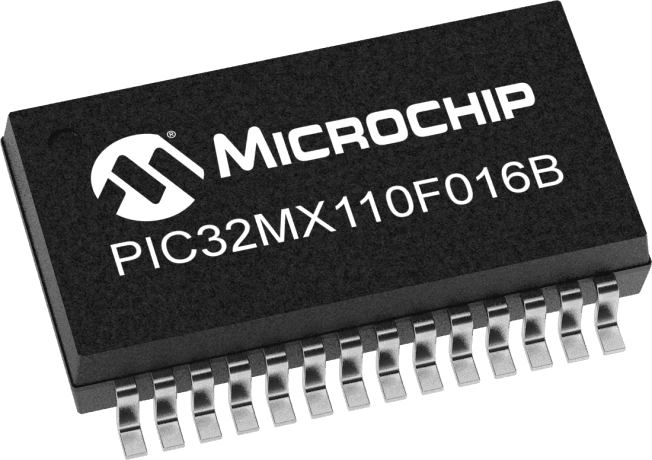

Product Images
