32-bit RISC microcontroller featuring a 40MHz core frequency and 16KB of FLASH memory. This QFN-packaged MCU offers 35 I/Os, including 34 programmable, and supports I2C, SPI, IrDA, UART, USART, USB, and I2S interfaces. Operating from 2.3V to 3.6V, it includes peripherals like Brown-out Detect/Reset, POR, PWM, WDT, and DMA, with 15 timers/counters and 2 UART channels. Designed for a temperature range of -40°C to 85°C, this lead-free and RoHS compliant component is ideal for embedded applications.
Frequency40MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC32MX110F016D-I/ML technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
32b
Frequency
40MHz
Interface
I2C, SPI, IrDA, UART, USART, USB, I2S
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Supply Voltage
2.3V
Number of I/Os
35
Number of Programmable I/O
34
Number of Timers/Counters
15
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
45
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX110F016D-I/ML Datasheet
Download the complete datasheet for Microchip PIC32MX110F016D-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

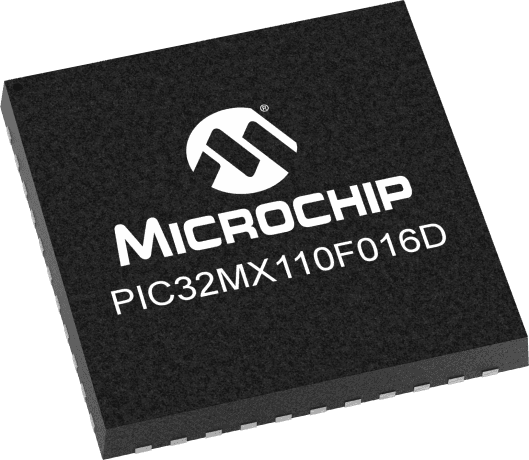

Product Images
