32-bit RISC microcontroller featuring a 40 MHz core frequency and 16KB of FLASH memory. Offers 4KB RAM and supports I2C, SPI, IrDA, UART, USART, USB, and I2S interfaces. Includes 35 I/Os, 15 timers/counters, and 2 UART channels, with integrated peripherals like Brown-out Detect, POR, PWM, and WDT. Operates from 2.3V to 3.6V supply voltage within a -40°C to 85°C temperature range. Packaged in a 44-pin QCC with lead-free and RoHS compliant construction.
Frequency40MHz
Quick Jump:
Technical Specifications
Microchip PIC32MX110F016D-I/TL technical specifications.
General
Core Architecture
PIC
Data Bus Width
32b
Frequency
40MHz
Interface
I2C, SPI, IrDA, UART, USART, USB, I2S
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Supply Voltage
2.3V
Number of I/Os
35
Number of Programmable I/O
34
Number of Timers/Counters
15
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX110F016D-I/TL Datasheet
Download the complete datasheet for Microchip PIC32MX110F016D-I/TL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

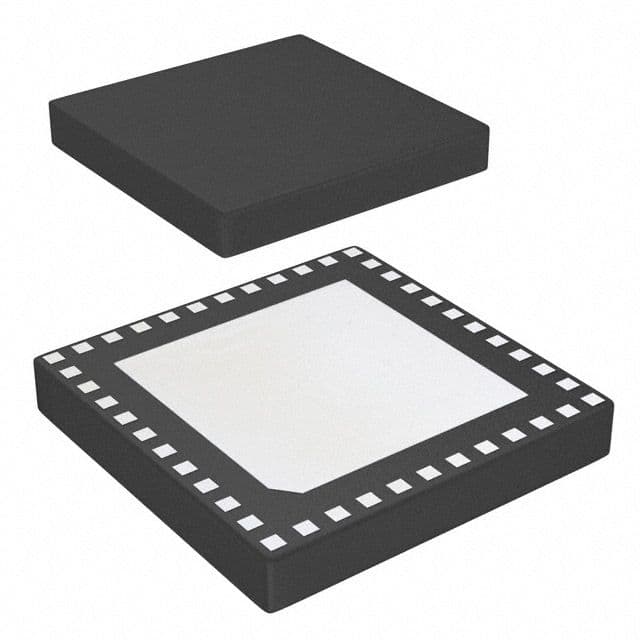

Product Images
