32-bit RISC microcontroller featuring a 40MHz core frequency and 128KB of FLASH memory. This surface-mount SOIC package offers 21 programmable I/O pins and 32KB of RAM. Integrated peripherals include I2C, SPI, UART, USART, I2S, IrDA, PWM, WDT, DMA, POR, and Brown-out Detect/Reset. Operates within a 2.3V to 3.6V supply voltage range and a temperature range of -40°C to 85°C.
Frequency40MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX150F128BT-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
32b
Frequency
40MHz
Interface
I2C, SPI, IrDA, UART, USART, I2S
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of Programmable I/O
21
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
32KB
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX150F128BT-I/SO Datasheet
Download the complete datasheet for Microchip PIC32MX150F128BT-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

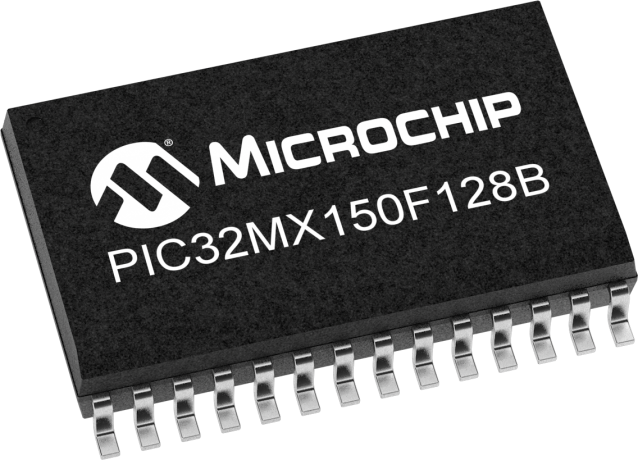

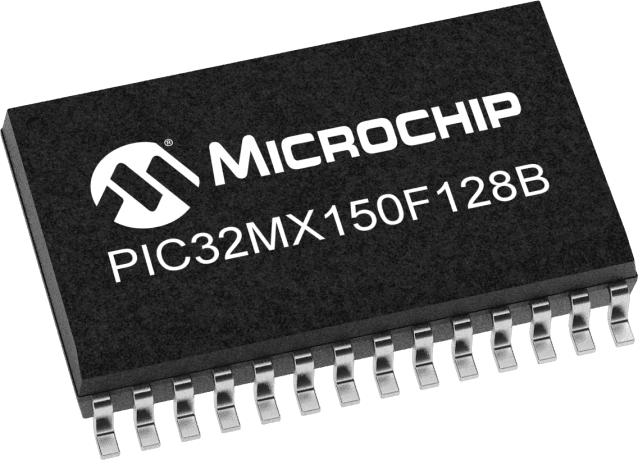

Product Images
