32-bit RISC microcontroller featuring a 40 MHz core clock speed and 128KB of FLASH memory. This MCU offers 32KB of RAM and supports I2C, SPI, USB, UART, and I2S interfaces. With 25 programmable I/O pins, 5 timers/counters, and 2 UART channels, it includes peripherals like Brown-out Detect, POR, PWM, and WDT. Operating from 2.3V to 3.6V, it functions within a -40°C to 85°C temperature range and is RoHS compliant.
Frequency40MHz
Quick Jump:
Technical Specifications
Microchip PIC32MX150F128C-I/TL technical specifications.
General
Core Architecture
PIC
Data Bus Width
32b
Frequency
40MHz
Interface
I2C, SPI, USB, UART, 4-WIRE, IrDA, USART, I2S
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Number of I/Os
25
Number of Programmable I/O
25
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
73
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
32KB
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX150F128C-I/TL Datasheet
Download the complete datasheet for Microchip PIC32MX150F128C-I/TL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

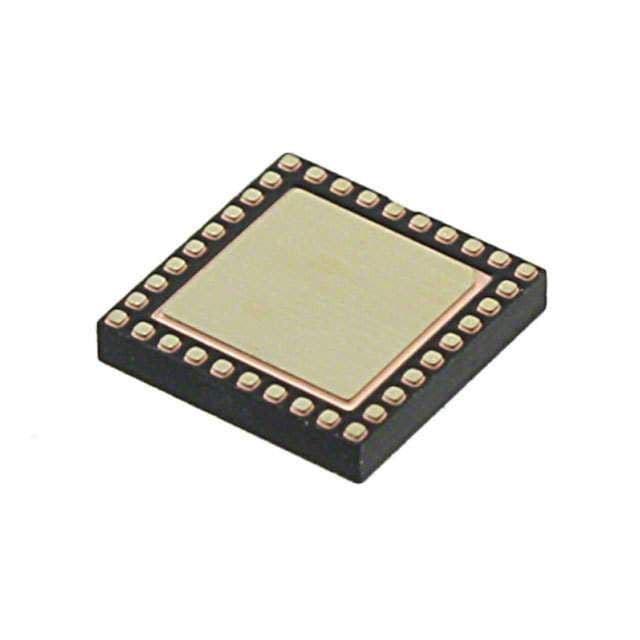

Product Images
