Technical Specifications
Microchip PIC32MX170F256B-50I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
32b
Interface
I2C, SPI, USB, UART, IrDA, USART, LIN, I2S
Max Frequency
50MHz
Max Operating Temperature
85°C
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of ADC Channels
10
Number of I/Os
21
Number of Programmable I/O
21
Number of Timers/Counters
5
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
64KB
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Weight
0.078125oz
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX170F256B-50I/SO Datasheet
Download the complete datasheet for Microchip PIC32MX170F256B-50I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

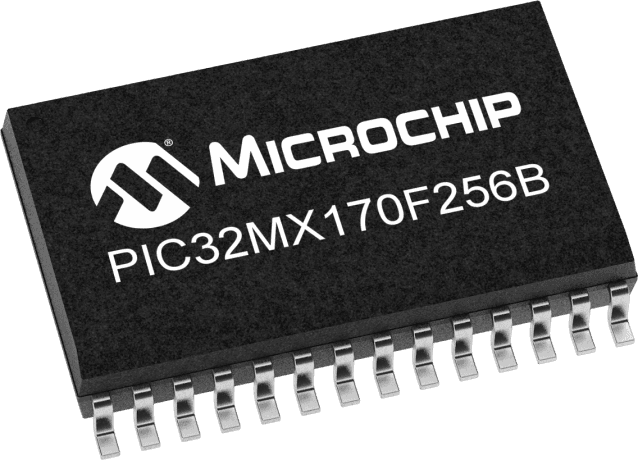

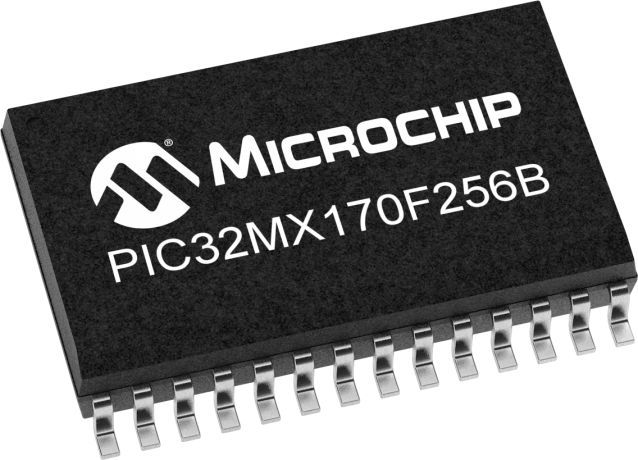

Product Images
