32-bit RISC microcontroller featuring a 50MHz core frequency and 256KB FLASH memory. This surface mount IC offers 64KB RAM, 21 programmable I/Os, and 10 ADC channels. Integrated peripherals include I2C, SPI, USB, UART, I2S, PWM, and a watchdog timer. Operating voltage ranges from 2.3V to 3.6V, with an operating temperature range of -40°C to 105°C.
Frequency50MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX170F256BT-V/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
32b
Frequency
50MHz
Interface
I2C, SPI, USB, UART, IrDA, USART, I2S
Max Frequency
50MHz
Max Operating Temperature
105°C
Max Supply Voltage
3.6V
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of ADC Channels
10
Number of I/Os
21
Number of Programmable I/O
21
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
2100
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
64KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, PIC® 32MX
Watchdog Timer
Yes
Weight
0.080001oz
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX170F256BT-V/SS Datasheet
Download the complete datasheet for Microchip PIC32MX170F256BT-V/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

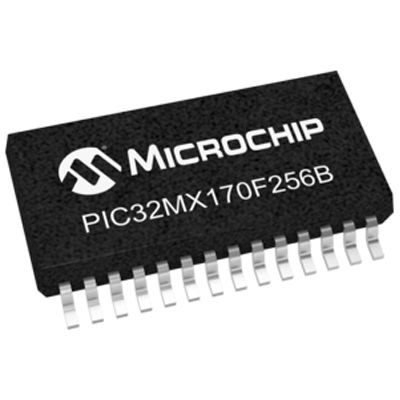

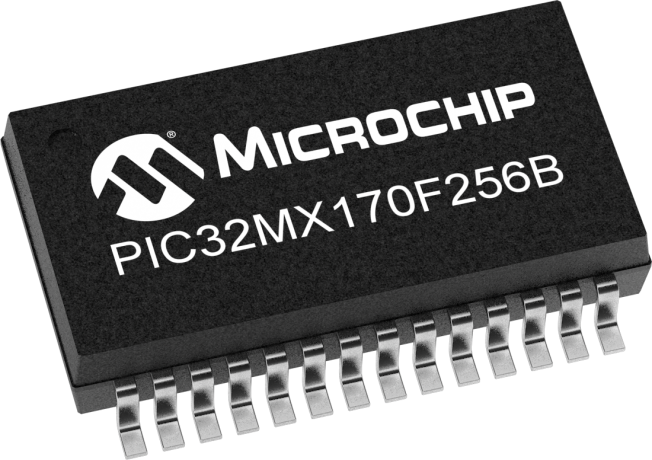

Product Images
