32-bit RISC microcontroller featuring a 50MHz core frequency and 256KB FLASH memory. This surface mount TQFP package offers 35 I/Os, including 34 programmable, and supports I2C, SPI, USB, UART, IrDA, USART, and I2S interfaces. Integrated peripherals include 5 timers/counters, 13 ADC channels, and a watchdog timer, operating from 2.3V to 3.6V with a temperature range of -40°C to 85°C.
Frequency50MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX170F256DT-50I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
32b
Frequency
50MHz
Interface
I2C, SPI, USB, UART, IrDA, USART, I2S
Max Frequency
50MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of ADC Channels
13
Number of I/Os
35
Number of Programmable I/O
34
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
1200
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
64KB
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX170F256DT-50I/PT Datasheet
Download the complete datasheet for Microchip PIC32MX170F256DT-50I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

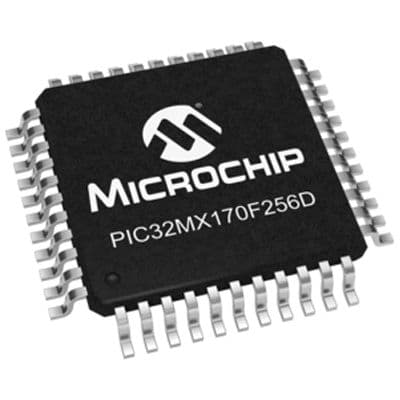

Product Images
