32-bit RISC microcontroller featuring a PIC core architecture, operating at up to 50MHz. This TQFP packaged MCU offers 512KB of FLASH memory and 64KB of RAM, with 85 programmable I/O pins. Integrated peripherals include I2C, SPI, UART, USART, LIN, and I2S interfaces, along with 5 timers/counters and a watchdog timer. Designed for operation between -40°C and 85°C, it supports supply voltages from 2.3V to 3.6V.
Frequency50MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC32MX170F512L-50I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
32b
Frequency
50MHz
Interface
I2C, SPI, IrDA, UART, USART, LIN, I2S
Max Frequency
50MHz
Max Operating Temperature
85°C
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.3V
Number of I/Os
85
Number of Programmable I/O
85
Number of Timers/Counters
5
Oscillator Type
Internal
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
64KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX170F512L-50I/PT Datasheet
Download the complete datasheet for Microchip PIC32MX170F512L-50I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

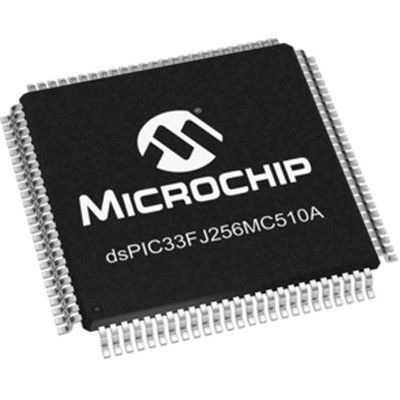

Product Images
