Microchip
PIC32MX210F016B-V/ML
32-BIT, FLASH, 40 MHz, RISC MICROCONTROLLER, PQCC28, 6 X 6 MM, 0.90 MM HEIGHT, 0.65 MM PITCH, LEAD FREE, PLASTIC, QFN-28
Frequency40MHz
PackageVQFN
Quick Jump:
Technical Specifications
Microchip PIC32MX210F016B-V/ML technical specifications.
General
Package/Case
VQFN
Core Architecture
PIC
Data Bus Width
32b
Interface
I2C, SPI, USB, IrDA, UART, USART, I2S
Max Frequency
40MHz
Max Operating Temperature
105°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of Programmable I/O
19
Number of Timers/Counters
15
Number of UART Channels
2
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX210F016B-V/ML Datasheet
Download the complete datasheet for Microchip PIC32MX210F016B-V/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

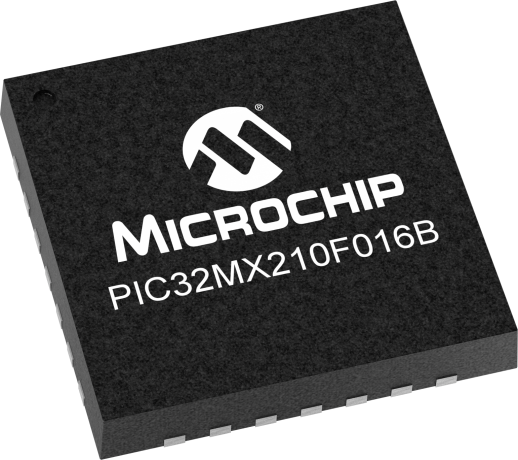

Product Images
