Microchip
PIC32MX210F016D-V/PT
32-BIT, FLASH, 40 MHz, RISC MICROCONTROLLER, PQFP44, 10 X 10 MM, 1 MM HEIGHT, 0.80 MM PITCH, LEAD FREE, PLASTIC, TQFP-44
Frequency40MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC32MX210F016D-V/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
32b
Interface
I2C, SPI, USB, IrDA, UART, USART, I2S
Max Frequency
40MHz
Max Operating Temperature
105°C
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of Programmable I/O
33
Number of Timers/Counters
15
Number of UART Channels
2
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX210F016D-V/PT Datasheet
Download the complete datasheet for Microchip PIC32MX210F016D-V/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

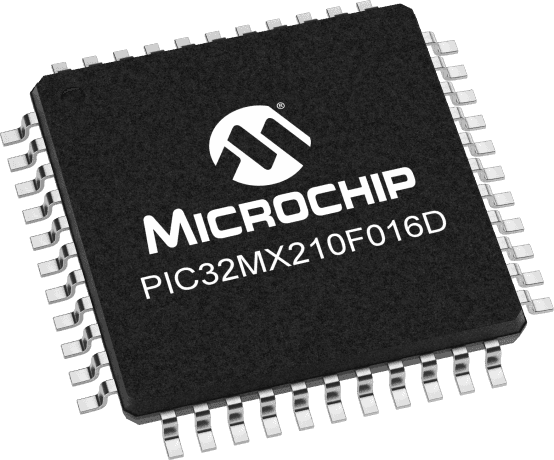

Product Images
