32-bit RISC microcontroller featuring a 40MHz core frequency and 32KB FLASH memory. This QFN-packaged MCU offers 19 programmable I/Os, multiple communication interfaces including I2C, SPI, UART, and USB, and 9 ADC channels. Operating from 2.3V to 3.6V, it includes integrated peripherals such as PWM, WDT, and DMA, with a temperature range of -40°C to 85°C.
Frequency40MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip PIC32MX220F032B-I/ML technical specifications.
General
Package/Case
QFN
Core Architecture
PIC
Data Bus Width
32b
Frequency
40MHz
Height
0.95mm
Interface
I2C, SPI, I2S, USB, IrDA, UART, USART, LIN
Lead Free
Lead Free
Length
6mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
2.3V
Number of ADC Channels
9
Number of I/Os
19
Number of I2C Channels
2
Number of Programmable I/O
19
Number of SPI Channels
2
Number of Timers/Counters
15
Number of UART Channels
2
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX220F032B-I/ML Datasheet
Download the complete datasheet for Microchip PIC32MX220F032B-I/ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

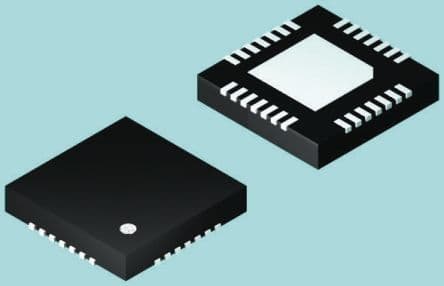

Product Images
