32-bit RISC microcontroller featuring 40 MHz operation and 32KB FLASH memory. This surface-mount device, housed in an SSOP-28 package, offers 8KB of RAM and supports multiple interfaces including I2C, SPI, USB, IrDA, UART, USART, and I2S. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, WDT, and DMA, with 19 programmable I/O pins and 15 timers/counters. Operating voltage ranges from 2.3V to 3.6V, with an operating temperature range of -40°C to 85°C.
Frequency40MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX220F032BT-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
32b
Frequency
40MHz
Interface
I2C, SPI, USB, IrDA, UART, USART, I2S
Max Frequency
40MHz
Max Operating Temperature
85°C
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of Programmable I/O
19
Number of Timers/Counters
15
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
2100
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX220F032BT-I/SS Datasheet
Download the complete datasheet for Microchip PIC32MX220F032BT-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

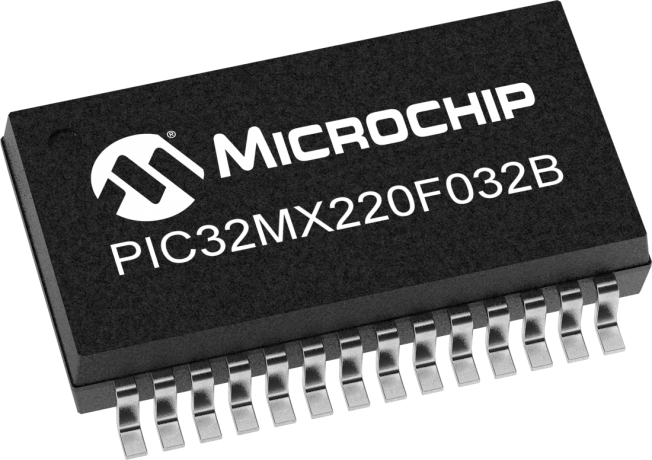

Product Images
