32-bit RISC microcontroller featuring a 40 MHz core frequency and 32KB FLASH memory. This integrated circuit offers 8KB RAM, 23 programmable I/O pins, and 5 timers/counters. Connectivity includes I2C, SPI, USB, IrDA, UART, USART, and I2S interfaces. Operating within a 2.3V to 3.6V supply range, it supports a temperature range of -40°C to 85°C and includes peripherals like DMA, PWM, and a watchdog timer. Packaged in a 36-pin QCC, this lead-free, RoHS compliant component is designed for efficient embedded applications.
Frequency40MHz
Quick Jump:
Technical Specifications
Microchip PIC32MX220F032C-I/TL technical specifications.
General
Core Architecture
PIC
Data Bus Width
32b
Frequency
40MHz
Interface
I2C, SPI, USB, IrDA, UART, USART, I2S
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Number of Programmable I/O
23
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
73
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX220F032C-I/TL Datasheet
Download the complete datasheet for Microchip PIC32MX220F032C-I/TL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

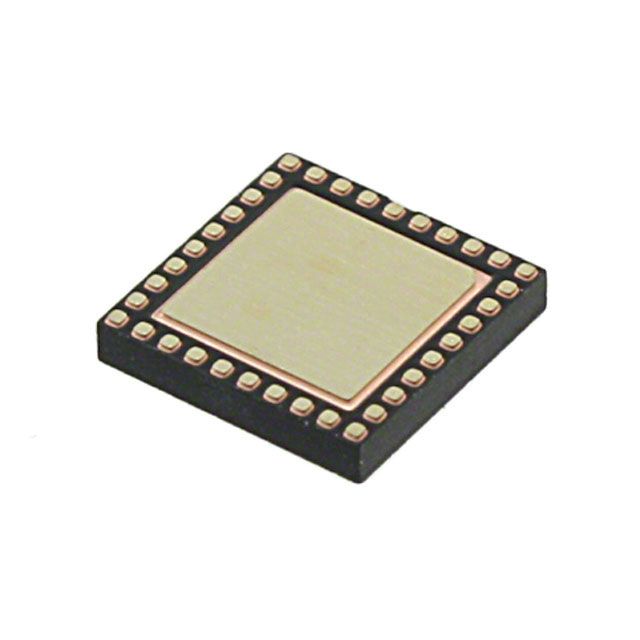

Product Images
