32-bit RISC microcontroller featuring a 40 MHz core frequency and 64KB of FLASH memory. This QCC44 package offers 33 programmable I/O pins and 32KB of RAM. Integrated peripherals include I2C, SPI, USB, UART, USART, I2S, DMA, and a watchdog timer. Operates from 2.3V to 3.6V supply voltage with a temperature range of -40°C to 85°C.
Frequency40MHz
Quick Jump:
Technical Specifications
Microchip PIC32MX230F064D-I/TL technical specifications.
General
Core Architecture
PIC
Data Bus Width
32b
Frequency
40MHz
Interface
I2C, SPI, USB, IrDA, UART, USART, I2S
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Supply Voltage
2.3V
Number of Programmable I/O
33
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
32KB
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX230F064D-I/TL Datasheet
Download the complete datasheet for Microchip PIC32MX230F064D-I/TL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

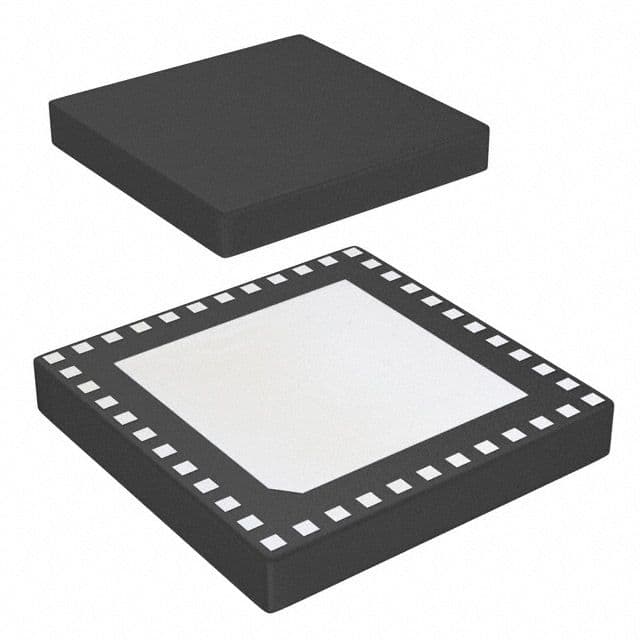

Product Images
