Microchip
PIC32MX250F128B-I/SO
32-bit 40MHz FLASH MCU, SOIC-28, 128KB FLASH, 32KB RAM, I2C, SPI, USB, UART
32-bit RISC microcontroller featuring a 40MHz core frequency and 128KB FLASH memory. This SOIC-28 packaged MCU offers 19 programmable I/Os, 32KB RAM, and extensive peripherals including I2C (2 channels), SPI (2 channels), UART (1 channel), USB, IrDA, LIN, I2S, and 4 PWM channels. Operating from 2.3V to 3.6V, it supports a temperature range of -40°C to 85°C and includes a watchdog timer.
Frequency40MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC32MX250F128B-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
32b
Frequency
40MHz
Height
2.35mm
Interface
I2C, SPI, USB, IrDA, UART, USART, LIN, I2S
Lead Free
Lead Free
Length
17.9mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Number of ADC Channels
6
Number of I/Os
19
Number of I2C Channels
2
Number of Programmable I/O
19
Number of PWM Channels
4
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
PWM, DMA, Brown-out Detect/Reset, POR, WDT, I2C
Radiation Hardening
No
RAM Size
32KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX250F128B-I/SO Datasheet
Download the complete datasheet for Microchip PIC32MX250F128B-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

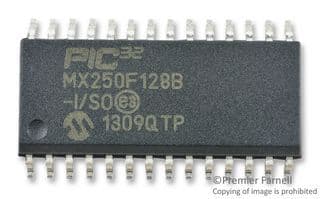

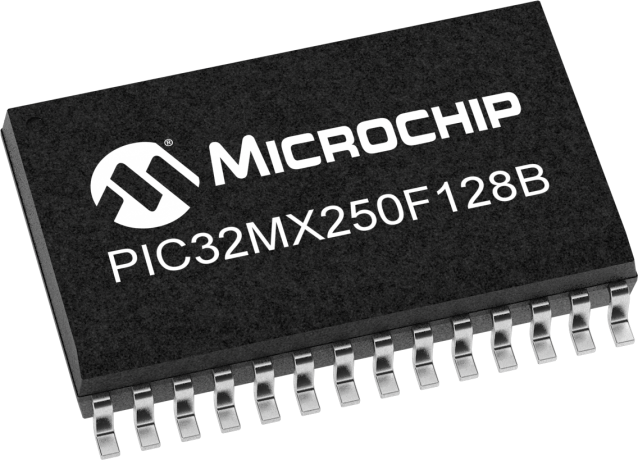

Product Images
