32-bit RISC microcontroller featuring a 40MHz core frequency and 128KB FLASH memory. This SOIC-packaged MCU offers 32KB RAM, 19 programmable I/O pins, and 5 timers/counters. Integrated peripherals include I2C, SPI, USB, UART, USART, I2S, IrDA, Brown-out Detect/Reset, POR, PWM, and WDT. Operating within a 2.3V to 3.6V supply range, it supports temperatures from -40°C to 105°C.
Frequency40MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip PIC32MX250F128B-V/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
PIC
Data Bus Width
32b
Frequency
40MHz
Interface
I2C, SPI, USB, IrDA, UART, USART, I2S
Max Frequency
40MHz
Max Operating Temperature
105°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Number of Programmable I/O
19
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
32KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX250F128B-V/SO Datasheet
Download the complete datasheet for Microchip PIC32MX250F128B-V/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

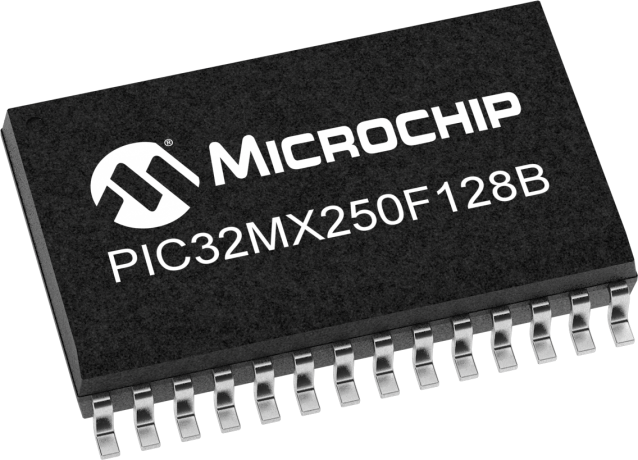

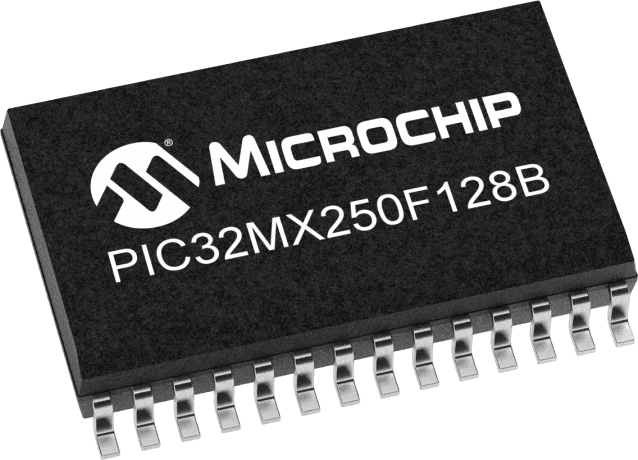

Product Images
