32-bit microcontroller featuring a 50MHz PIC core, 128KB FLASH memory, and 32KB RAM. Offers 34 programmable I/Os, 13 ADC channels, and 5 PWM channels. Supports multiple interfaces including I2C (2 channels), SPI (2 channels), UART (2 channels), and USB (1 channel). Operates within a temperature range of -40°C to 85°C and a supply voltage of 2.3V to 3.6V. Surface mount package with dimensions of 6mm x 6mm x 0.925mm.
Frequency50MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX250F128D-50I/TL technical specifications.
General
Core Architecture
PIC
Data Bus Width
32b
Frequency
50MHz
Height
0.925mm
Interface
I2C, SPI, UART, SCI, USB, IrDA, USART, LIN
Length
6mm
Max Frequency
50MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of ADC Channels
13
Number of I/Os
34
Number of I2C Channels
2
Number of Programmable I/O
34
Number of PWM Channels
5
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Number of USB Channels
1
Package Quantity
61
Packaging
Rail/Tube
Peripherals
PWM, DMA
RAM Size
32KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX250F128D-50I/TL Datasheet
Download the complete datasheet for Microchip PIC32MX250F128D-50I/TL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

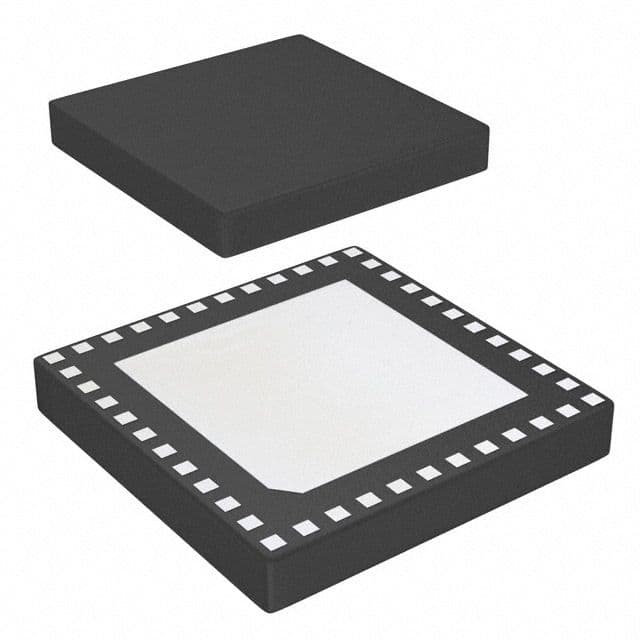

Product Images
