32-bit RISC microcontroller featuring a 40MHz core, 128KB FLASH memory, and 32KB RAM. TQFP package with 33 programmable I/Os, supporting I2C, SPI, USB, IrDA, UART, USART, LIN, and I2S interfaces. Includes 13 ADC channels, 5 PWM channels, 5 timers, and peripherals like DMA, POR, WDT, and Brown-out Detect. Operates from 2.3V to 3.6V, with a temperature range of -40°C to 85°C.
Frequency40MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC32MX250F128D-I/PT technical specifications.
General
Address Bus Width
32b
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
32b
Frequency
40MHz
Height
1.05mm
Interface
I2C, SPI, USB, IrDA, UART, USART, LIN, I2S
Lead Free
Lead Free
Length
10mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Number of ADC Channels
13
Number of I/Os
33
Number of I2C Channels
2
Number of Programmable I/O
33
Number of PWM Channels
5
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
32KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX250F128D-I/PT Datasheet
Download the complete datasheet for Microchip PIC32MX250F128D-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

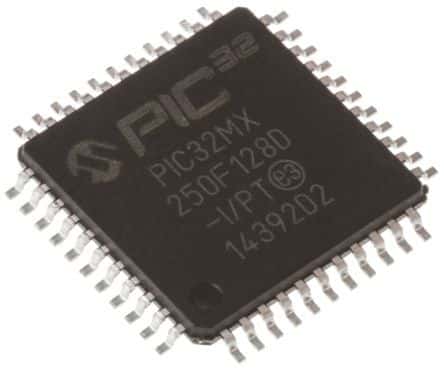

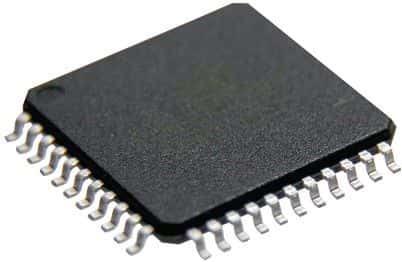

Product Images
