32-bit RISC microcontroller featuring a PIC core, 256KB FLASH memory, and 64KB RAM. Operates at up to 50MHz with 19 I/O pins and 21 programmable I/O pins. Supports I2C, SPI, USB, UART, IrDA, USART, and I2S interfaces. Includes 10 ADC channels, 5 timers/counters, and peripherals such as Brown-out Detect, POR, PWM, WDT, and DMA. Packaged in SSOP for surface mounting, with an operating temperature range of -40°C to 105°C.
Frequency50MHz
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX270F256B-V/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
PIC
Data Bus Width
32b
Interface
I2C, SPI, USB, UART, IrDA, USART, I2S
Max Frequency
50MHz
Max Operating Temperature
105°C
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of ADC Channels
10
Number of I/Os
19
Number of Programmable I/O
21
Number of Timers/Counters
5
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
47
Packaging
Bulk
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
64KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, PIC® 32MX
Watchdog Timer
Yes
Weight
0.080001oz
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX270F256B-V/SS Datasheet
Download the complete datasheet for Microchip PIC32MX270F256B-V/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

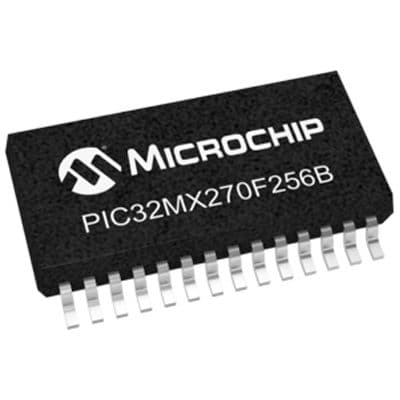

Product Images
