Microchip
PIC32MX270F256D-50I/TL
32-bit MCU, 50MHz, 256KB Flash, 64KB RAM, 34 I/O, USB, SPI, I2C, UART
32-bit RISC microcontroller featuring a 50MHz core frequency and 256KB of FLASH memory. This surface-mount device offers 64KB RAM, 34 programmable I/Os, and multiple communication interfaces including I2C (2 channels), SPI (2 channels), USB (1 channel), and UART (2 channels). Integrated peripherals include a watchdog timer, PWM, DMA, and 13 ADC channels. Operating voltage ranges from 2.3V to 3.6V, with an operating temperature range of -40°C to 85°C.
Frequency50MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX270F256D-50I/TL technical specifications.
General
Core Architecture
PIC
Data Bus Width
32b
Frequency
50MHz
Height
0.925mm
Interface
I2C, SPI, USB, UART, IrDA, USART, I2S
Lead Free
Lead Free
Length
6mm
Max Frequency
50MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of ADC Channels
13
Number of I/Os
34
Number of I2C Channels
2
Number of Programmable I/O
34
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
64KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PIC® 32MX
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX270F256D-50I/TL Datasheet
Download the complete datasheet for Microchip PIC32MX270F256D-50I/TL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

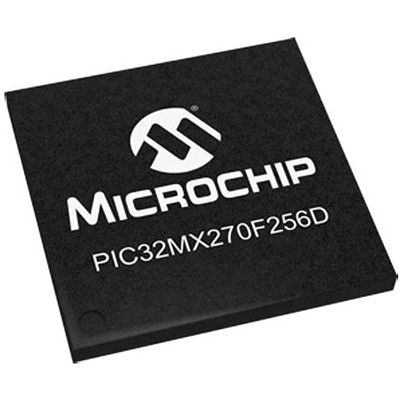

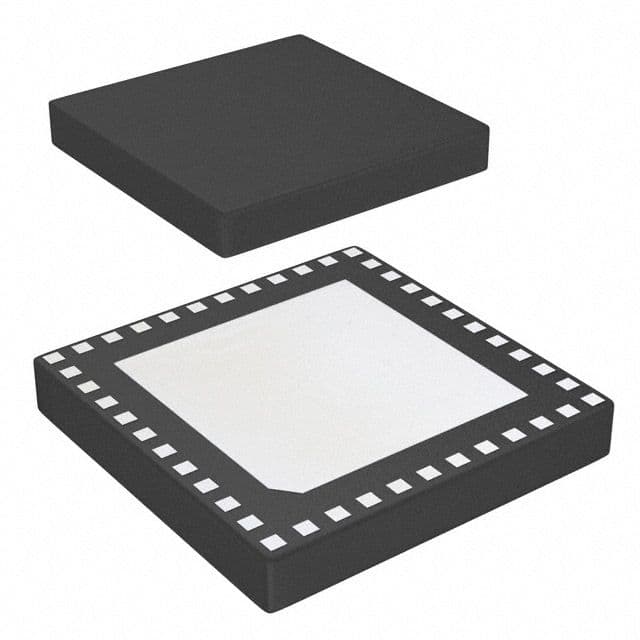

Product Images
