32-bit RISC microcontroller featuring a PIC core architecture. Offers 256KB FLASH memory and 64KB RAM. Supports I2C, SPI, USB, UART, IrDA, USART, and I2S interfaces with 33 I/O pins. Operates at a maximum frequency of 40MHz and includes 13 ADC channels and 5 timers. Packaged in TQFP for surface mounting, with an operating temperature range of -40°C to 105°C.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX270F256DT-V/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
32b
Interface
I2C, SPI, USB, UART, IrDA, USART, I2S
Max Frequency
40MHz
Max Operating Temperature
105°C
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of ADC Channels
13
Number of I/Os
33
Number of Programmable I/O
34
Number of Timers/Counters
5
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
1200
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
64KB
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX270F256DT-V/PT Datasheet
Download the complete datasheet for Microchip PIC32MX270F256DT-V/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

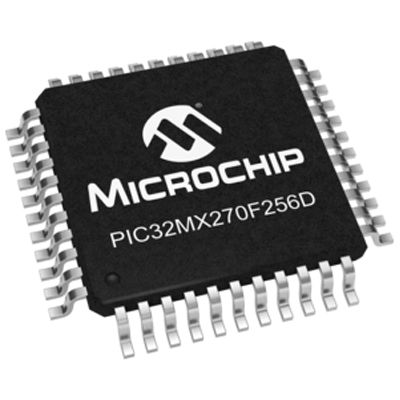

Product Images
