32-bit microcontroller featuring a PIC core architecture operating at up to 100MHz. This surface mount device offers 512KB of FLASH memory and 128KB of RAM. Integrated peripherals include I2C, SPI, and UART interfaces, along with 28 A/D converter channels and 5 PWM channels. Housed in a TQFP package, it supports a supply voltage range of 2.3V to 3.6V and operates from -40°C to 85°C.
Frequency100MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX370F512H-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
32b
Frequency
100MHz
Height
1.05mm
Interface
I2C, SPI, UART
Lead Free
Lead Free
Length
10mm
Max Frequency
100MHz
Max Operating Temperature
85°C
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
28
Number of I/Os
53
Number of I2C Channels
2
Number of PWM Channels
5
Number of SPI Channels
2
Number of Timers/Counters
1
Number of UART Channels
4
Number of USB Channels
1
Package Quantity
160
Packaging
Tray
RAM Size
128KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
80MHz
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX370F512H-I/PT Datasheet
Download the complete datasheet for Microchip PIC32MX370F512H-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

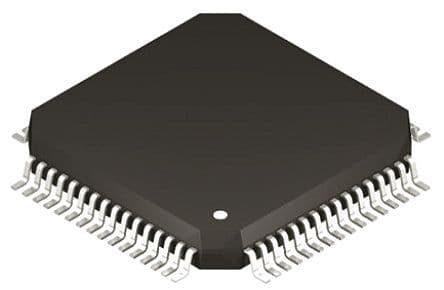

Product Images
