32-bit microcontroller featuring 512KB FLASH and 128KB RAM. Operates at a maximum frequency of 100MHz with a 32-bit data bus. Supports I2C, SPI, and UART interfaces. Offers 28 ADC channels and an operating supply voltage up to 3.6V. Packaged in TQFP, this RoHS compliant component operates across a temperature range of -40°C to 85°C.
Frequency100MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip PIC32MX370F512HT-I/PT technical specifications.
General
Package/Case
TQFP
Data Bus Width
32b
Interface
I2C, SPI, UART
Max Frequency
100MHz
Max Operating Temperature
85°C
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of ADC Channels
28
Operating Supply Voltage
3.6V
Package Quantity
1200
Packaging
Tape and Reel
RAM Size
128KB
RoHS Compliant
Yes
Series
80MHz
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX370F512HT-I/PT Datasheet
Download the complete datasheet for Microchip PIC32MX370F512HT-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

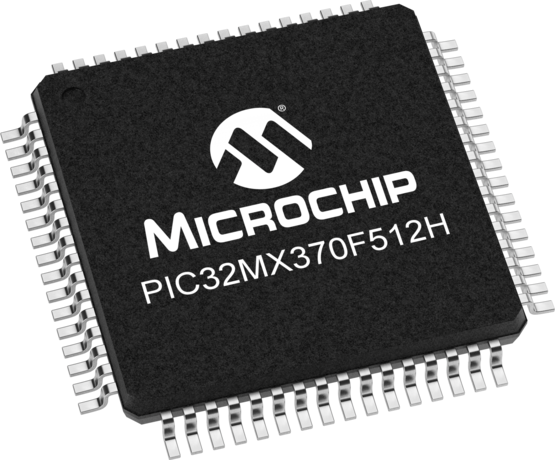

Product Images
