32-bit PIC microcontroller featuring 32KB FLASH memory and 8KB RAM. Operates at 40MHz with a maximum frequency of 80MHz. Offers 53 I/Os, including 5 programmable I/Os, and 5 timers/counters. Supports I2C, SPI, RS-232, USB, UART, IrDA, and USART interfaces. Includes internal oscillator, brown-out detect, POR, PWM, and WDT peripherals. Surface mountable in a VQFN package, with an operating temperature range of -40°C to 105°C and a supply voltage of 2.3V to 3.6V.
Frequency40MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC32MX420F032H-40V/MR technical specifications.
General
Package/Case
VQFN
Core Architecture
PIC
Data Bus Width
32b
Frequency
40MHz
Interface
I2C, SPI, RS-232, USB, UART, IrDA, USART
Max Frequency
80MHz
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of I/Os
53
Number of Programmable I/O
5
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
40
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
8KB
Series
PIC® 32MX
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX420F032H-40V/MR Datasheet
Download the complete datasheet for Microchip PIC32MX420F032H-40V/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

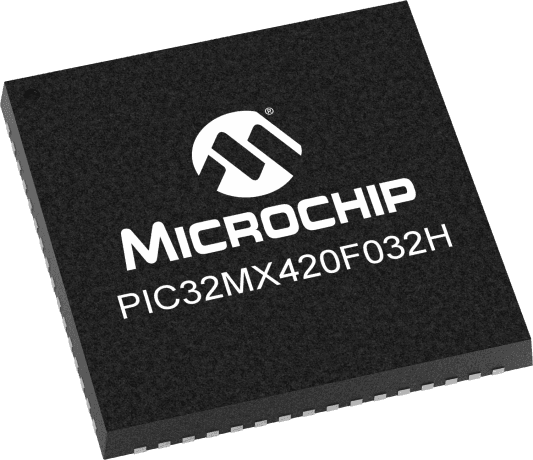

Product Images
