Technical Specifications
Microchip PIC32MX450F256HT-V/PT technical specifications.
General
Package/Case
TQFP
Data Bus Width
32b
Interface
I2C, SPI, UART, USB, IrDA, USART
Max Frequency
80MHz
Max Operating Temperature
105°C
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of ADC Channels
28
Number of I/Os
49
Number of UART Channels
4
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
1200
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
64KB
RoHS Compliant
Yes
Series
PIC® 32MX
Compliance
RoHS
Compliant
Datasheet
Microchip PIC32MX450F256HT-V/PT Datasheet
Download the complete datasheet for Microchip PIC32MX450F256HT-V/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

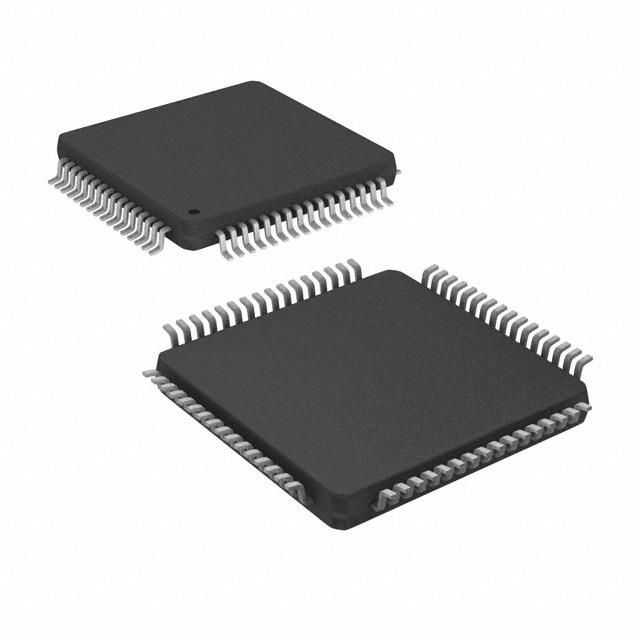

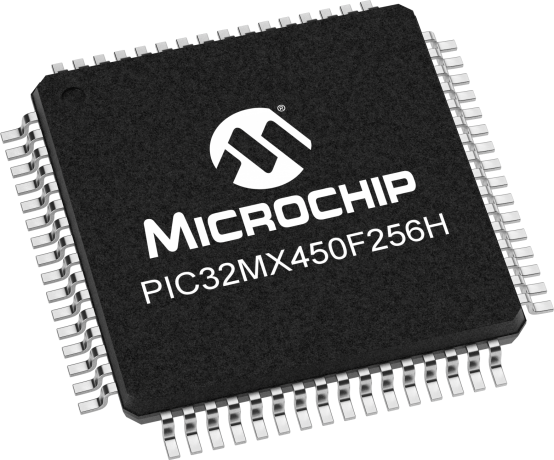

Product Images
